CN-28YK/CN-28YQ Naphtha/LPGReforming Catalysts

CN-28YK and CN-28YQ are sintered-type steam reforming catalysts for gaseous and light hydrocarbon feedstocks. They use nickel as the active component, alumina as the carrier, and basic oxides as promoters.

The catalysts are designed for reforming applications using naphtha, LPG and other light hydrocarbon feedstocks, providing good low-temperature activity, mechanical strength and resistance to carbon formation.

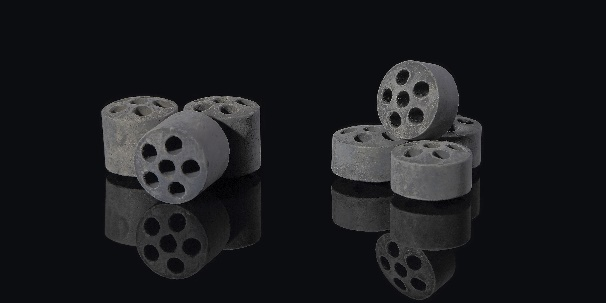

CNNM-01 Catalyst

Product Details

CN-28YK and CN-28YQ are nickel-based sintered-type steam reforming catalysts, with alumina as the carrier and basic oxides as promoters.

To date, they have been used in more than 40 H₂ production units, with production capacities ranging from 20,000 to 100,000 Nm³/h.

Key Features

  • 1.Optimized external shape to improve mechanical strength and outer surface area;
  • 2.Optimized pore structure to improve effective utilization of internal surface area;
  • 3.Basic oxides added as promoters to improve low-temperature activity and resistance to carbon formation.

Application Scope

  • 1.CN-28YK and CN-28YQ are suitable for reforming applications in various chemical plants, including:
  •  ·Fertilizer plant;
  •  ·Methanol plant;
  •  ·H₂ plant.
  • 2.They are suitable for feedstocks such as:
  •  ·LNG;
  •  ·Naphtha;
  •  ·Petroleum associated gas;
  •  ·Refinery off gas;
  •  ·etc.

Operation Instruction

  • 1.CN-28YK is usually loaded at the upper section of the primary reformer tube;
  • 2.CN-28YQ is loaded at the lower section of the reformer tube.
